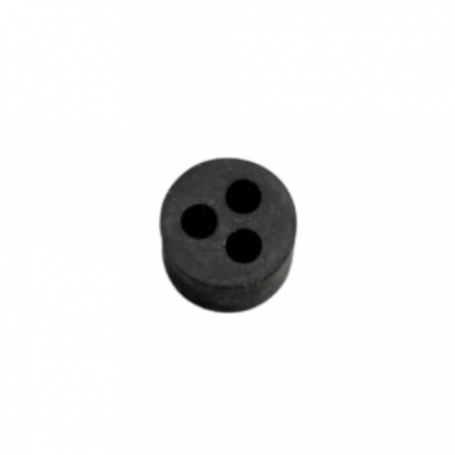

MEC07C9 Multihole Seals for cable glands

Multihole Cable Glands Seals are used to help connect cables or wires within an electrical or electronic enclosure. The cable gland aids in maintaining the enclosure's waterproof seal where the cable and wire enter.

Volume discounts

Quantity	Unit price	Percentage
10	€45.18	%7
50	€43.72	%10
100	€42.75	%12
250	€41.29	%15
500	€39.84	%18
1000	€38.86	%20

€48.58 (tax incl.) €48.58 (tax excl.)

No tax

Customization Option
Contact us for customization services.

UV Printing
UV printing option.

Description

Fitting Cable Glands for the multihole seals
Code	Hole Quantity	Hole Dia (mm)	Plastic PG Thread	Plastic Metric Thread	Brass PG Thread	Brass Metric Thread	Spiral PG Thread	Spiral Metric Thread
MEC07C9	4	9	OR 07 (PG29)	OMR 07 (M32x1,5)	-	-	OPB 07 (PG29)	OMB 06 (M40x1,5)

IP 68 5 bar Protection Class

-30 C to + 100 C Degrees Permanent Operational Temperature

+150 C degrees Short Term Max. Operational Temperature

Thermoplastic Vulcanizate TPV Seal

Data sheet

Hole Quantity: 4
Hole Size ( Multi Seals): 9 mm
Thread Size: M32 x 1,5
PG 29
