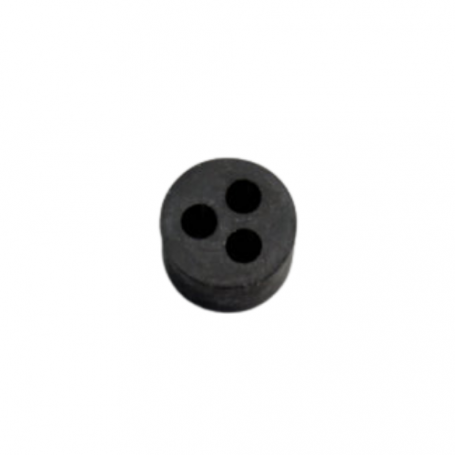

MEC08F8 Multihole Seals for cable glands

Several holes make it simple to insert and seal multiple cables into a single gland. Multihole cable glands provide high ingress protection.

Quantity Unit price Percentage
10 €3.43 %7
50 €3.32 %10
100 €3.25 %12
250 €3.14 %15
500 €3.03 %18
1000 €2.95 %20
€3.69 (tax incl.) €3.69 (tax excl.)
No tax
Customization Option
Contact us for customization services.
UV Printing
UV printing option.
Description

Fitting Cable Glands for the multihole seals
CodeHole QuantityHole Dia (mm)Plastic
PG Thread		Plastic
Metric Thread		Brass
PG Thread		Brass
Metric Thread		Spiral
PG Thread		Spiral
Metric Thread
MEC08F868OR 08 (PG36)OMR 08 (M40x1,5)--OPB 07 (PG29)OMB 06 (M40x1,5)

IP 68 5 bar Protection Class

-30 C to + 100 C Degrees Permanent Operational Temperature

+150 C degrees Short Term Max. Operational Temperature

Thermoplastic Vulcanizate TPV Seal

Data sheet
MEC08F8
Hole Quantity
6
Hole Size ( Multi Seals)
8 mm
Thread Size
M40 x 1,5
PG 29
PG 36
-
