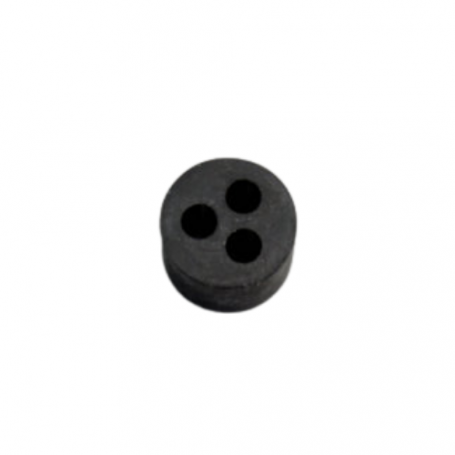

MEC07O3 Multihole Seals for cable glands

In cases where more than one non-terminated cable or wire should be entered into the same hole, we have used a multiple-hole seal. Altinkaya offers the best quality solution with multihole cable gland products.

Volume discounts

Quantity	Unit price	Percentage
10	€43.32	%7
50	€41.92	%10
100	€40.99	%12
250	€39.59	%15
500	€38.20	%18
1000	€37.26	%20

€46.58 (tax incl.) €46.58 (tax excl.)

No tax

Customization Option
Contact us for customization services.

UV Printing
UV printing option.

Description

Fitting Cable Glands for the multihole seals
Code	Hole Quantity	Hole Dia (mm)	Plastic PG Thread	Plastic Metric Thread	Brass PG Thread	Brass Metric Thread	Spiral PG Thread	Spiral Metric Thread
MEC07O3	16	3	OR 07 (PG29)	OMR 07 (M32x1,5)	-	-	OPB 07 (PG29)	OMB 06 (M40x1,5)

IP 68 5 bar Protection Class

-30 C to + 100 C Degrees Permanent Operational Temperature

+150 C degrees Short Term Max. Operational Temperature

Thermoplastic Vulcanizate TPV Seal

Data sheet

Hole Quantity: 16
Hole Size ( Multi Seals): 3 mm
Pieces in Pack: 100 Pieces
Thread Size: M32 x 1,5
M40 x 1,5
PG 29
