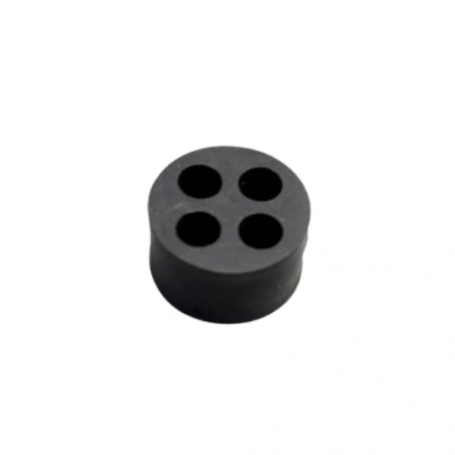

MEC05C5 Multihole Seals for cable glands

Electronic enclosure cases could be used with cable holes. To protect the IP feature of these boxes, cable glands are used as a component. Multi-hole seals help to use multiple cables with a cable hole.

Volume discounts

Quantity	Unit price	Percentage
10	€42.62	%7
50	€41.25	%10
100	€40.33	%12
250	€38.96	%15
500	€37.58	%18
1000	€36.66	%20

€45.83 (tax incl.) €45.83 (tax excl.)

No tax

Customization Option
Contact us for customization services.

UV Printing
UV printing option.

Description

Fitting Cable Glands for the multihole seals
Code	Hole Quantity	Hole Dia (mm)	Plastic PG Thread	Plastic Metric Thread	Brass PG Thread	Brass Metric Thread	Spiral PG Thread	Spiral Metric Thread
MEC05C5	4	5	OR 05 (PG16)	OMR 05 (M20x1,5)	OR 23 (PG16)	OMR 21 (M20x1,5)	OPB 05 (PG16)	OMB 04 (M25x1,5)

IP 68 5 bar Protection Class

-30 C to + 100 C Degrees Permanent Operational Temperature

+150 C degrees Short Term Max. Operational Temperature

Thermoplastic Vulcanizate TPV Seal

Data sheet

Hole Quantity: 4
Hole Size ( Multi Seals): 5 mm
Pieces in Pack: 100 Pieces
Thread Size: M20 x 1,5
M25 x 1,5
PG 16
