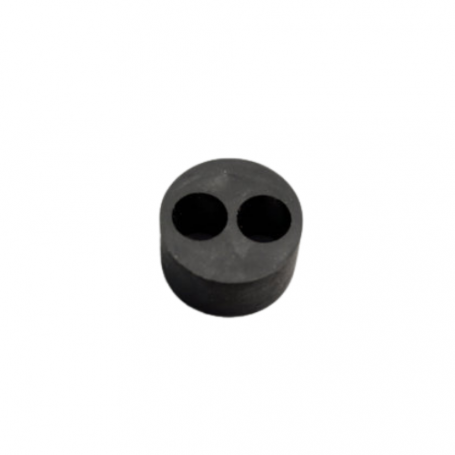

MEC05A4 Multihole Seals for cable glands

Cable glands are the finest solution for protecting electronic enclosures from dust and water. Multihole seals are required when using cable glands with several cables and wires.

Volume discounts

Quantity	Unit price	Percentage
10	€42.62	%7
50	€41.25	%10
100	€40.33	%12
250	€38.96	%15
500	€37.58	%18
1000	€36.66	%20

€45.83 (tax incl.) €45.83 (tax excl.)

No tax

Customization Option
Contact us for customization services.

UV Printing
UV printing option.

Description

Fitting Cable Glands for the multihole seals
Code	Hole Quantity	Hole Dia (mm)	Plastic PG Thread	Plastic Metric Thread	Brass PG Thread	Brass Metric Thread	Spiral PG Thread	Spiral Metric Thread
MEC05A4	2	4	OR 05 (PG16)	OMR 05 (M20x1,5)	OR 23 (PG16)	OMR 21 (M20x1,5)	OPB 05 (PG16)	OMB 04 (M25x1,5)

IP 68 5 bar Protection Class

-30 C to + 100 C Degrees Permanent Operational Temperature

+150 C degrees Short Term Max. Operational Temperature

Thermoplastic Vulcanizate TPV Seal

Data sheet

Hole Quantity: 2
Hole Size ( Multi Seals): 4 mm
Pieces in Pack: 100 Pieces
Thread Size: M20 x 1,5
M25 x 1,5
PG 16
