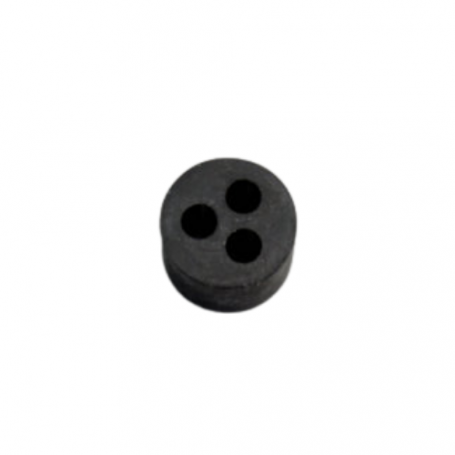

MEC03B5 Multihole Seals for cable glands

Reliable performance provider multi-hole seal accessories for electronic enclosure boxes. Eligible to insert cables into the cases for providing IP feature.

Volume discounts

Quantity	Unit price	Percentage
10	€32.07	%7
50	€31.03	%10
100	€30.34	%12
250	€29.31	%15
500	€28.27	%18
1000	€27.58	%20

€34.48 (tax incl.) €34.48 (tax excl.)

No tax

Customization Option
Contact us for customization services.

UV Printing
UV printing option.

Description

Fitting Cable Glands for the multihole seals
Code	Hole Quantity	Hole Dia (mm)	Plastic PG Thread	Plastic Metric Thread	Brass PG Thread	Brass Metric Thread	Spiral PG Thread	Spiral Metric Thread
MEC03B5	3	5	OR 03 (PG11)	OMR 03 (M16x1,5)	OR 21 (PG11)	OMR 19 (M16x1,5)	OPB 03 (PG11)	OMB 03 (M20x1,5)

IP 68 5 bar Protection Class

-30 C to + 100 C Degrees Permanent Operational Temperature

+150 C degrees Short Term Max. Operational Temperature

Thermoplastic Vulcanizate TPV Seal

Data sheet

Hole Quantity: 3
Hole Size ( Multi Seals): 5 mm
Pieces in Pack: 100 Pieces
Thread Size: M16 x 1,5
M20 x 1,5
PG 11
