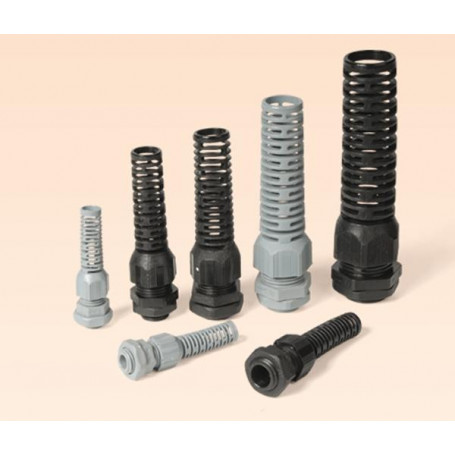

Spiral Cable Gland PG-Thread
Cable Gland by Altinkaya Enclosures
Produced by Polyamide Material
Colour Options are RAL 7001 (Gray), RAL 7035 (L.Gray), and RAL 9005 (Black)
IP 68 5 bar Protection class
Permanent operational temperature is between -30 C to + 100 C degrees
Short term maximum operational temperature is +150 C degrees
Thermoplastic vulcanized TPV Seal
With spiral top for bend protection
For highly movable flexible cables
Antivibration protection
Customization Option
Contact us for customization services.
Contact us for customization services.
UV Printing
UV printing option.
UV printing option.
Description
Standard Cable Gland PG Thread
| AG Thread | Gray Code RAL 7001 | L. Gray Code RAL 7035 | Black Code RAL 9005 | Pieces in bag | H (mm) | GL (mm) | Wrench Size(mm) | Cable Dia (mm) |
| PG7 | ORG 19 | ORL 19 | ORB 19 | 10 | 57 | 8 | 15 | 3-6,5 |
| PG9 | ORG 20 | ORL 20 | ORB 20 | 10 | 70 | 8 | 19 | 4-8 |
| PG11 | ORG 21 | ORL 21 | ORB 21 | 10 | 81 | 8 | 22 | 5-10 |
| PG13,5 | ORG 22 | ORL 22 | ORB 22 | 10 | 89 | 9 | 24 | 6-12 |
| PG16 | ORG 23 | ORL 23 | ORB 23 | 10 | 107 | 9 | 27 | 10-14 |
| PG21 | ORG 24 | ORL 24 | ORB 24 | 10 | 124 | 11 | 33 | 13-18 |
Techical Properties
| Material | Polyamide |
| Colour | RAL 7001 (Gray) |
| RAL 7035 (L.Gray) | |
| RAL 9005 (Black) | |
| Protection class | IP 68 5 bar |
| Permanent operational temp. | -30 C to + 100 C degrees |
| Short term max. operational temp. | +150 C degrees |
| Seal | Thermoplastic vulcanizate TPV |
Data sheet
OR(C) (XX)
- Material
- Polyamid
- IP Rating
- IP-68
- Model Type
- Spiral
- Thread
- PG Thread
- Thread Size
- PG 7
PG 9
PG 11
PG 13,5
PG 16
PG 21 - Cable Size
- 3-6,5 mm
4-8 mm
5-10 mm
6-12 mm
10-14 mm
13-18 mm
